STS3215 7.4V 14KG Magnetic Encoder Servo Metal Gear Dual Axis TTL Serial Bus Servo 360 Degree Gear Ratio 1/147 String Servos for Arduino Robotic Arm Smart Robot
43,370원
역대 최저
0원
역대 최고
0원
평균가
0원
가격 변동 그래프
11번가 원화(KRW) 기준 가격입니다.
그래프 로딩 중…
쿠팡에서 더 저렴한 가격을 찾아보세요
쿠팡에서 "STS3215 4V Magnetic Encoder Servo Metal Gear" 검색이 포스팅은 쿠팡 파트너스 활동의 일환으로, 이에 따른 일정액의 수수료를 제공받습니다.
상품 특징

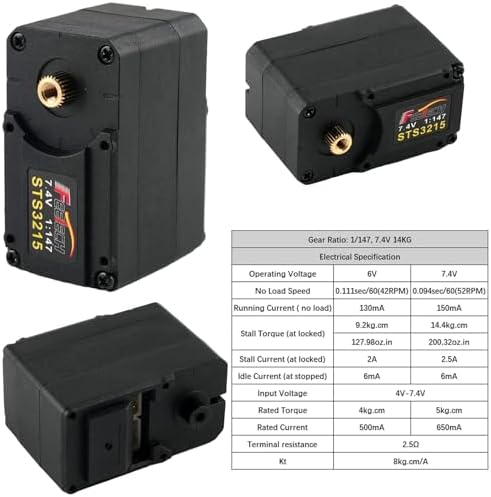

- STS3215 7.4V 14kg.cm serial bus TTL control smart servo, with 12 bit high precision magnetic coding sensor
- 360 degree continuous rotation while still offering position control over an effective range of 360 degree
- Gear Ratio: 1/147; Operating Voltage Range: 6-7.4V; No load speed: 0.111sec/60(42RPM) at 6V; 0.094sec/60(52RPM) at 7.4V; Stall Torque: (at locked): 9.2kg.cm (127.98oz.in) at 6V; 14.4kg.cm (200.32oz.in) at 7.4V
- Multiple servos can be daisy-chained on the same serial bus. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios
- What you will get: 1 x STS3215 7.4V 14KG Magnetic Encoder Servo Gear Ratio: 1/147
스펙 정보
| 브랜드 | DIYmall |
|---|---|
| 배터리 포함 여부 | 무 |
| 스타일 | 7.4V 14KG Gear Ratio 1/147 |
| 패키지 크기 | 3.1 x 3.1 x 3.1 inches |
| 패키지 무게 | 0.08 kg |
| 크기 | 1 x 1.4 x 1.8 inches |
