Slamtec RPLIDAR M2M3 Mapping Lidar Sensor Scanner, 40Meter (130ft) 2D 360° Ranging, 802.3/802.3u 100M Ethernet Port, Robotics ROS SLAM LIDAR Scanner, Robots Drone Mapping Navigation and Positioning

가격 변동 그래프

상품 특징

• [High Accuracy] Upgraded version Slamtec M2M3 lidar rangefinder kit support measuring Range: 0.1m - 40m; Rotational Speed: 8Hz-15Hz; Angular Range: 360°; Frequency: 10Hz; Sampling Frequency: 32KHz, Maximum Area: 300m x 300m. Users only need to connect the 5V DC power supply, with Ethernet or Wifi communication can work.
• [Data Communication interfaces] Slamtec M2M2 Mapper fully compatible with ROS, Fast,Accurate and easy data analysis; Built-in 10/100M Ethernet (802.3/802.3u ), WiFi Protocol (802.11a/b/g/n/ac ).It provides greater possibilities for developers to develop applications.
• [SLAM Real-time Mapping] SLAMTEC M2M3 lidar sensor scanner has built-in SLAM real-time map building and localization function, which is suitable for robot navigation and localization, environmental mapping and handheld measurement and other applications.The data can be accessed in conjunction with the SLAMWARE SDK or the ROS Node driver.

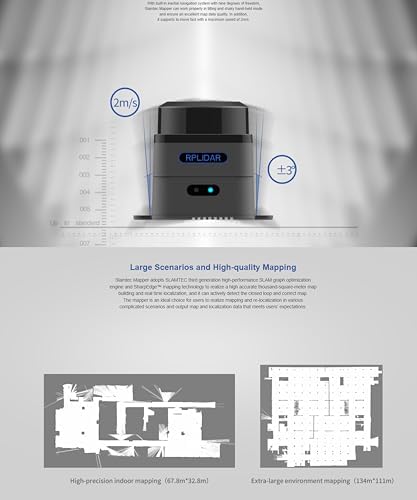

• [SLAM SharpEdge Technology] SLAMTEC M2M3 lidar scanner adopts high-performance SLAM map optimization engine and SharpEdge fine mapping technology, which can proactively detect and correct closed loops, and realize 100,000 square meters of high-precision map building and positioning functions.
• [Stable Transmission Data] SLAMTEC M2M3 Mapper Lidar Sensor works without additional sensors or data input. With a built-in 9-degree-of-freedom inertial navigation system, the SLAMTEC M2M3 Mapper works well in handheld mapping modes with high and low elevations and inclinations, ensuring the best quality of mapping data.
• [Complete SDK and ROS Driver] SLAMTEC M2M3 Mapper Lidar Sensor provides complete SDK development kit, cell phone and PC evaluation tools, which are convenient for users to expand development and data acquisition. Meanwhile, combined with the supporting ROS driver, the map and positioning data generated can be used directly in the ROS environment, which is fully compatible.
• [Rich Software] The SLAMTEC M2M3 Mapper lidar scanner is supplied with RoboStudio, the robot management and development software, which allows graphical debugging via a network connection. An SDK for x86 windows, x86 Linux, arm Linux, etc. is also available. For more information, please contact WayPonDEV.
